SIDE MARKER AMBER CLICK-IN 4-FUNC 3M

Art.no: 14-106AC
SEK1,229.00
In stock Non-stock item Out of stock
Description

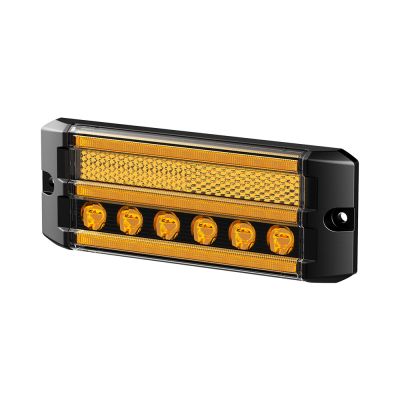

14-106A is a side marker with click-in bracket and four functions; side marker, warning light, indicator and reflex. All functions are ECE approved. The directional warning light is approved according to ECE R65 class 2/XA2 and has 12 different flash patterns to choose from. Several units can be synchronized. The side marker, warning light and reflex is amber. The unit has 3 meter outgoing cable. Fits into the side marker/position light slots on Volvo and Scania.
Teknisk information
More Information
Brand HBA
Voltage 12/24V
Current 12V/R65 0,75A, R6 0,092A, R91 0,05A. 24V/R65 0,38A, R6 0,052A, R91 0,03A
Connection Outgoing cable
Cable Length 3 meter
IP rating IP67
ECE Approval R3, R6, R91, R65klass2XA2
EMC Approval R10
Dimensions (LxHxW) 107,5 x 60 x 30,5 mm
House material Aluminum
Color of the light Orange
Lens color Clear lenses
Warranty 3 Year
Light source LED
Weight (kg) 0.1
