LUPUS AUXILIARY LIGHT 9" DYN POSITION

Art.no: 12-3038
SEK1,899.00
In stock Non-stock item Out of stock
Description

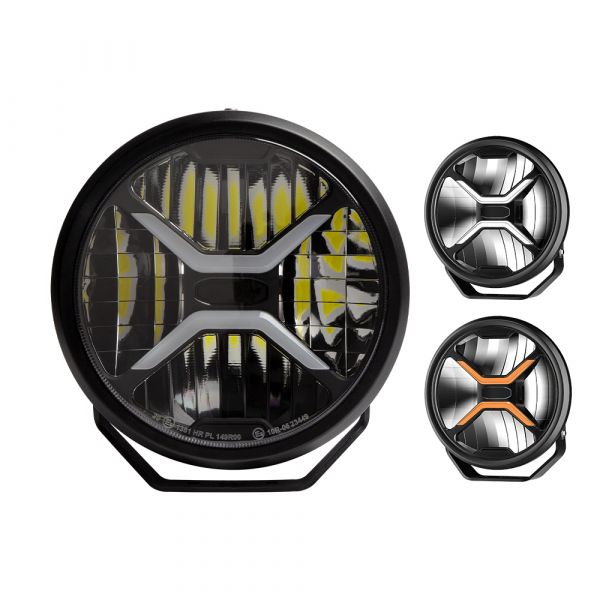

Round 9" auxiliary light with a beam pattern that combines both length and width, 120W. Lights with 1 lux line at 575 meters in E-boost mode. The lamp has a white position light approved according to ECE R7 and an amber styling light. The position light is dynamic. Aluminum housing and a solid bracket.
Teknisk information
More Information
Brand HBA
Illuminated with 1 lux on 575 meter
Effective lumens 6700
Raw lumens 11000
E-mark Reference 20
Voltage 12/24V
Effect 120W
Current 12V/9,5A, 24V/4,6A
EMC Approval R10
ECE Approval R7, R112, R148, R149
Dimensions (LxHxW) 220 x 236 x 80 mm
Warranty 3 Year
Connection Short cable with 4-pin DT connector
IP rating IP69K
House material Aluminum
Light source LED
Bracket material Stainless steel
Weight (kg) 2.0
