LED BAR KIT 2235 BRACKET & HARNESS

Art.no: 34-2235
SEK3,084.85
In stock Non-stock item Out of stock
Description

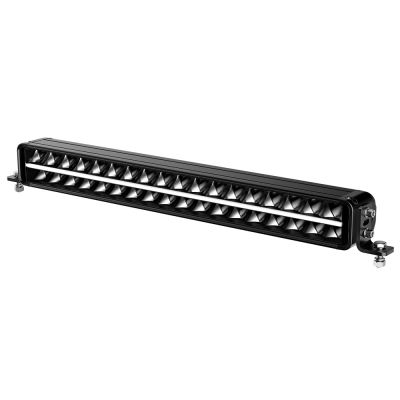

LED bar kit including Styx double light bar with position light, bracket and cable harness. Styx double is a LED light bar with smokey lens and position light, 180W. Styx double is approved according to ECE R112 and lights with 1 lux line at 650 meters. The position light has dynamic start-up and is either an ECE R7 approved white light or an amber styling light. Housing made of aluminum. The bar fits perfect below or above the license plate or recessed in the vehicle grille.
Teknisk information
More Information
Brand HBA
Illuminated with 1 lux on 650 meter
Effective lumens 13500
Raw lumens 15120
Voltage 10-30V
Effect 180W
Current 12V/11A, 24V/5,38A
EMC Approval R10
ECE Approval R7, R112, R148
Dimensions (LxHxW) 537 x 62 x 70 mm
Warranty 3 Year
Connection 4-pin DT connector
IP rating IP69K
House material Aluminum
Light source LED
LED quantity 36st
LED output 5W
Weight (kg) 3.3
