IMPULSE RELAY 12V POSITIVE CHARGE. SWITCH

Art.no: 16-700326
SEK984.68
In stock Non-stock item Out of stock
Description

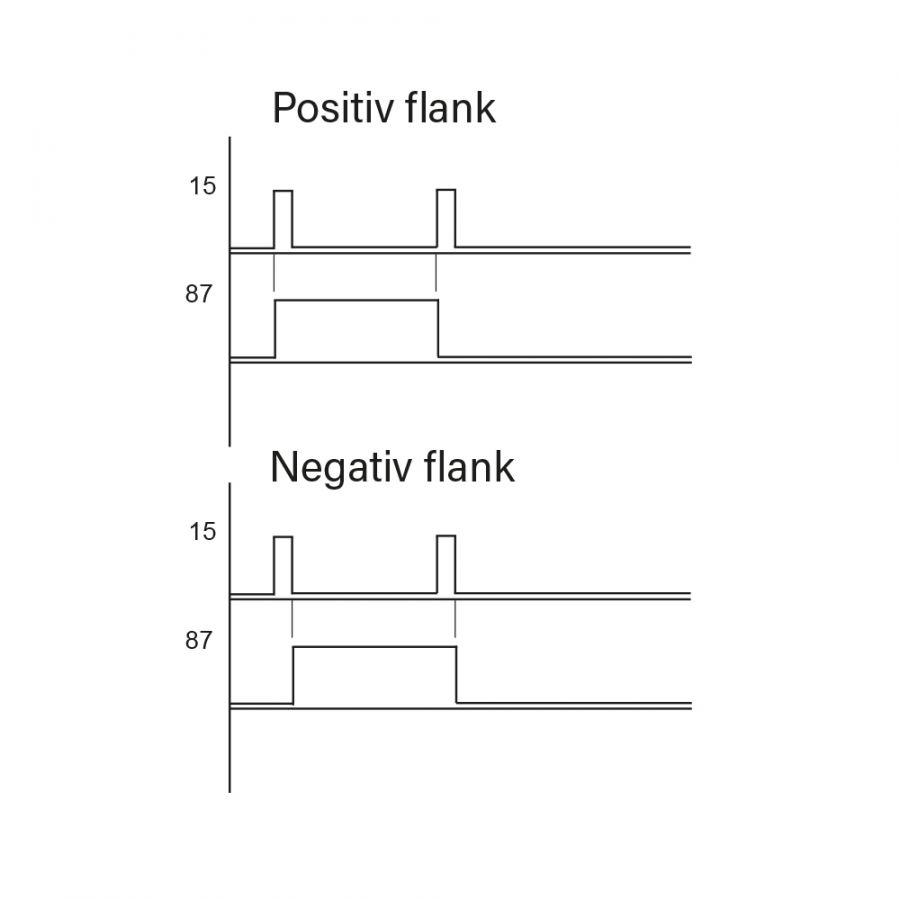

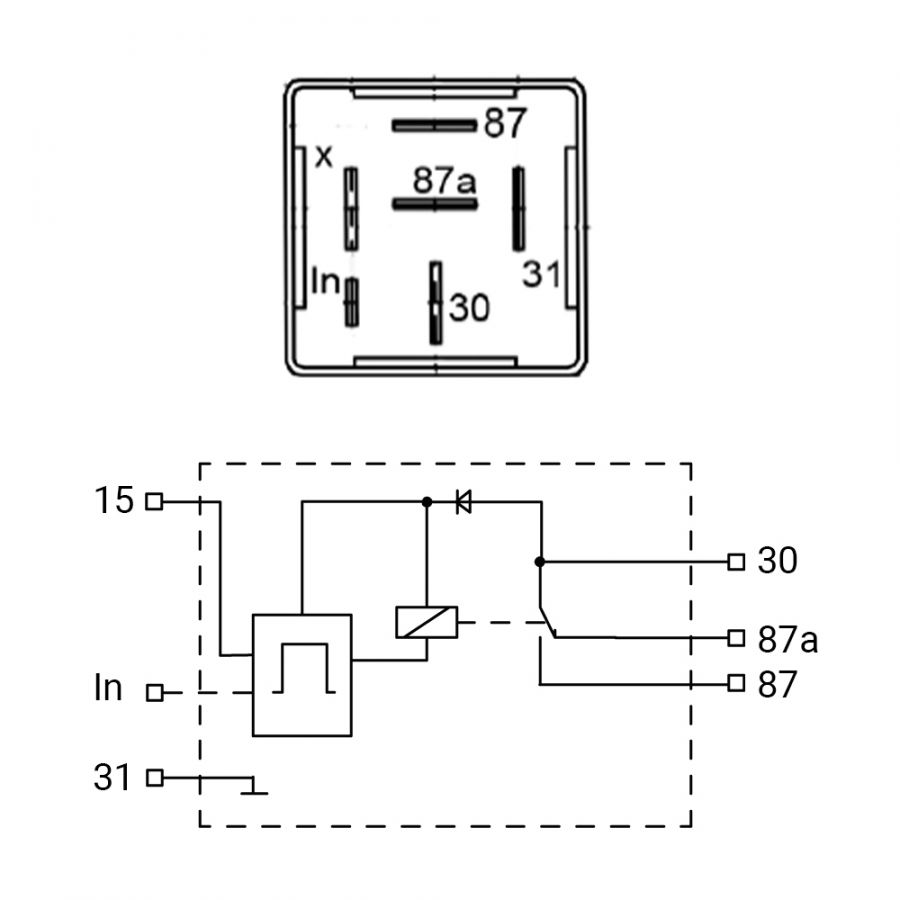

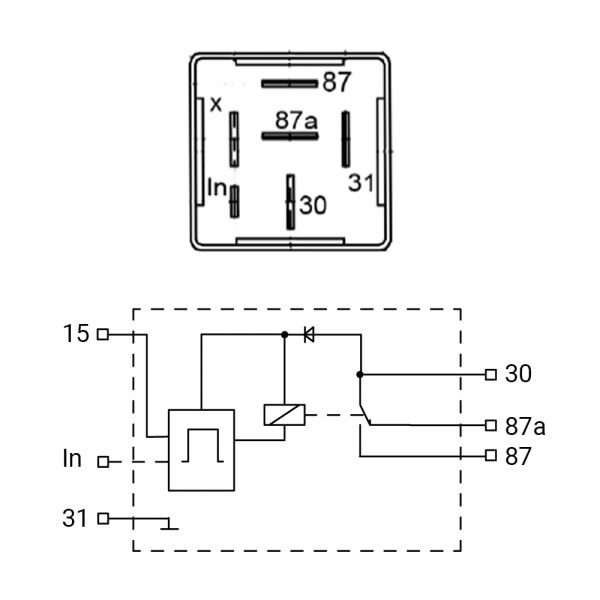

Bistable latching mini relay 12V, also known as impulse relay. Connect positive to pin 30, negative to pin 31, and input signal to pin 15. Upon positive input signal to pin 15*, the relay switches and remains in that state until the next positive input signal. If the relay loses power, it will maintain its position. *The socket may also be marked with "85"
Teknisk information
More Information
Warranty 1 Year
Weight (kg) 0.1
